Wallbox Supernova 60kW – SN60

5m Cable, 60kW, Dual CCS2

103.399,00 AED inc. VAT

    Request a quote

    Contact information

    Brands: Wallbox

    Free Delivery

    Fast Delivery

    Split Your Purchase

    Personal Advice

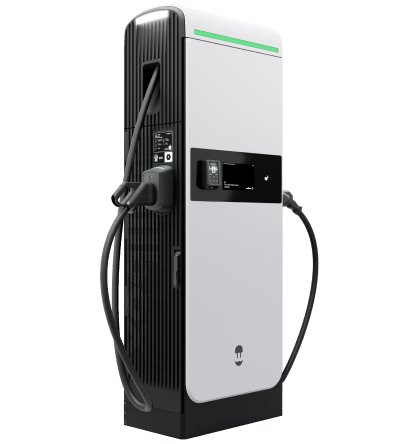

    Wallbox Supernova 60kW: The powerful charger for electric vehicles

    The Wallbox Supernova 60kW is an intelligent DC fast charger that has been specially developed for commercial and industrial use. With a maximum charging power of up to 60 kW, it enables fast and efficient charging for a wide range of electric vehicles. Thanks to its robust design, it is well protected against vandalism and suitable for outdoor use. The charging station has a large, integrated color display and a user-friendly menu navigation that makes charging easy and intuitive. In addition, the charging station can be individually branded to meet the needs of your company.

    Powerful and flexible charging technology

    The Supernova 60kW offers a charging power of up to 60 kW and is compatible with various plug types such as CCS and CHAdeMO to support a wide range of electric vehicles. With an output voltage of 150 V to 920 V, the charging station is ideally equipped for current and future electric vehicles.

    User-friendly 7-inch color display

    The DC fast charging station is operated via a user-friendly 7-inch color display. The multilingual menu makes it easy to start and end charging sessions without any prior knowledge being required. During charging, the display provides detailed information on the charging status, charging power, energy already charged, charging time and the estimated remaining charging time.

    Robust and weatherproof design

    The housing of the Wallbox Supernova 60kW is certified to protection class IP54 and offers comprehensive protection against the effects of the weather. In addition, the charging station is well protected against vandalism thanks to the IK10 protection class.

    RFID authentication

    Thanks to the RFID function, you can ensure that only authorized people use the charging station. This enables companies, hotels or operators to grant special rights such as free charging to certain RFID cards.

    OCPP communication

    The Open Charge Point Protocol (OCPP) enables communication between the charging station and a backend system. With OCPP 1.6 you can easily control one or more charging stations, view individual charging processes and manage users.

    Authentication via Plug & Charge

    The Wallbox Supernova 60kW supports authentication via Plug & Charge, so that vehicles can automatically authenticate themselves with the backend using a digital certificate. For users this means: plug in and start charging.

    Note: The Plug & Charge function is only possible in conjunction with a Plug & Charge-capable backend and vehicle.

    Weight 290 kg
    Dimensions 46 × 72 × 200 cm
    Scope of delivery

    Wallbox Supernova 60kW – SN60

    Number of charging points

    2

    Mobile APP

    Yes

    Brand

    Wallbox

    Manufacturer warranty

    1 year

    RFID

    Yes

    Cable holder

    Integrated

    LAN

    Yes

    WLAN

    Yes

    Modbus

    Yes

    Charging port

    Charging cable Type 2

    Charging power

    1×60 kW or 2×30 kW

    Length charging cable

    5.00 m

    Rated voltage

    230 / 400 V

    Country of Origin

    Spain

    https://shamsplug.com/wp-content/uploads/Datasheet_Wallbox-Supernova-60kW-–-SN60.pdf
    https://shamsplug.com/wp-content/uploads/Brochure_Wallbox-Supernova-60kW-–-SN60.pdf
